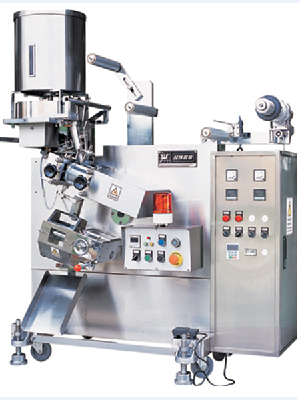

Single roller particles, automatic powder filling packing machine

Single roller particles, automatic powder filling packing machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10000 Sets per Month
  • Port: China Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1996-03-12
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1
  • Place of Origin:  China
  • Brand Name:  Jinwei machinery
  • Model Number:  60006
  • Weight: 140.000 kg

Product description:


JW - K/FG150. Product model


Product features


The machine USES a single set of heat sealing roller way of sealing, can automatic filling and packing of trilateral sealing machine. Mainly used in the packaging of powder, granules. The machine roller adopts tilted method, by packing material after passing the precise measurement for measuring plate unit into the blanking with gate mouth, discharging mouth opening and closing of the gate by the material fell into the bag. Seal pattern using complete, continuous checkerboard pattern, stable and reliable sealing. Metering device has a variety of ways, such as measuring plate method (T), screw method (S).


Suitable for the material


Suitable for all kinds of powder particles of Chinese traditional medicine, tea, instant noodle seasoning powder, granular food, dry food, pesticide powder, etc.


The main parameters


Packing ability: 60-150 bags/min (depending on the packaging material, material and specifications)


Filling capacity: 50 ml or less


Bag length: 30 ~ 160 mm


Bag width: trilateral sealing: 30 mm ~ 90 mm


Seal number: paragraph


Packaging film width: 60 ~ 180 mm


The largest film roll diameter: 400 mm


Film core pipe diameter: 75 mm


Power: 2 kw, three-phase 380 v (+ / - 5%), 50 hz


Depth: 900 mm; Width: 1300 mm; Total height: 1680 mm (highest)


Machine weight: 350 kg


U needs beyond the above special customization.


Optional device


Photoelectric control device, film tension control device, hot press printed words, printer, etc.

  • Size:  1
  • Place of Origin:  China
  • Brand Name:  Jinwei machinery
  • Model Number:  60006
  • Weight: 140.000 kg
