Product description:

JW - K2G150TV3. Product model

Product features

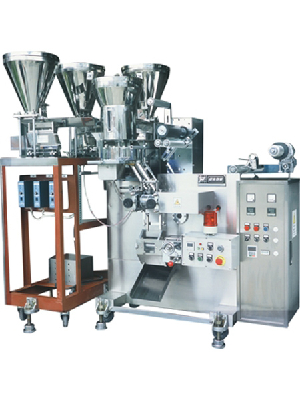

The machine USES a single set of heat sealing roller way of sealing, can double column automatic filling and packing of the trilateral sealing machine. Mainly used in the packaging of powder, granules and dehydrated vegetables. The machine roller adopts tilted method, by packing material after passing the precise measurement for measuring plate unit into the blanking with gate mouth, discharging mouth opening and closing of the gate by the material fell into the bag. Seal pattern using complete, continuous checkerboard pattern, stable and reliable sealing. Metering device has a variety of ways, such as measuring plate method (T), screw way (S), linear vibration (V) and disk (D).

Suitable for the material

Suitable for all kinds of powder particles of Chinese traditional medicine, tea, instant noodle seasoning powder, granular food, dry food, pesticide powder, etc.

The main parameters

Packing ability: 60-120 bags/min (depending on the packaging material, material and specifications)

Filling capacity: 5 g or less (powder), 2 g (food) or less (depending on the material)

Bag length: 60 ~ 160 mm

Bag width: trilateral sealing: 30 mm ~ 90 mm

Seal number: paragraph

Packaging film width: 60 ~ 180 mm

The largest film roll diameter: 400 mm

Film core pipe diameter: 75 mm

Power: 2 kw, three-phase 380 v (+ / - 5%), 50 hz

Depth: 1400 mm; Width: 1880 mm; Total height: 1850 mm (highest)

Machine weight: 550 kg

U needs beyond the above special customization.

Optional device

Photoelectric control device, film tension control device, hot press printed words, code printer, linear vibration disc and vibration, etc.
