Product description:

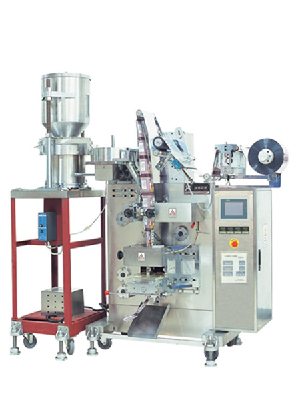

JW - K/FG250AB. Product model

Product features

This machine adopts the advanced industrial computer control system, through the man-machine "dialogue", can be convenient and accurate method of bag size increase or cut short and packing speed adjustment change; Chinese touch LCD screen can realize the function of setting, make the operation more simple. The machine USES a single set of heat sealing roller way of sealing, can perform a long strip back sealing bag making and packaging forms. Mainly suitable for powder, granules, metering device has a variety of ways, such as measuring plate method (T), screw method (S).

Suitable for the material

Suitable for all kinds of powder particles in Chinese traditional medicine, tea, granular food, instant noodle seasoning powder, etc.

The main parameters

Packaging capacity: 120 bags/min or less (depending on the packaging material, material and specifications)

Filling capacity: 50 ml or less

Bag width: 30 ~ 90 mm

Bag length: 40 ~ 200 mm

Seal number: 2

Packaging film width: 80 ~ 180 mm

The largest film roll diameter: 400 mm

Film core pipe diameter: 75 mm

Power: 4 kw, three-phase 380 v (+ / - 5%), 50 hz

Depth: 850 mm; Width: 1450 mm; Total height: 1900 mm (highest)

Machine weight: 400 kg

U needs beyond the above special customization.

Optional device

Photoelectric control device, printer, linear vibration disc and vibration, etc.
