Product description:

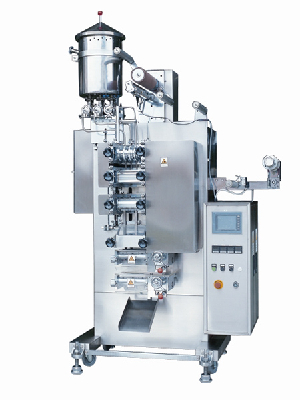

JW - J3G350AIIHC3. Product model

Product features

This machine adopts the advanced industrial computer control system, through the Chinese touch LCD screen, easy to accurately complete bag size adjustment, the change of packing capacity, packing speed regulation, automatic calibration, and other functions of setting. This machine USES the three sections of the seal (the first and second paragraph is heat seal, the third paragraph for the cold sealing reinforced sealing), have multiple columns packaging function, can greatly improve the production efficiency. Metering device can choose, there are many ways such as piston pump for packaging glue body (P) and the pump on the sea (H), used in liquid packaging magnetic multistage pump (M), used for gluing body packaging and must be continuous filling tower pump (R), automatic filling and packing machine is the ideal liquid viscous, can be packing filling at high temperature.

Suitable for the material

Suitable for all kinds of middle and lower viscosity of the paste shape items, such as ketchup, all kinds of sauce, shampoo, laundry detergent, ointment, jam in pesticide, etc.

The main parameters

Packaging capacity: 70 bags/min * columns (depending on the packaging material, material and specifications)

Filling capacity: 1-13 ml (liquid); 1-10 ml (stick)

Bag length: 40 ~ 200 mm

Bag width: 40 ~ 55 mm

Seal number: three sections

The largest film roll diameter: 400 mm

Film core pipe diameter: 75 mm

Power: 4.5 KW, three-phase 380 v (+ / - 5%), 50/60 hz

Depth: 850 mm; Width: 1650 mm; Total height: 2600 mm (highest)

Machine weight: 600 kg

U needs beyond the above special customization.

Optional device

Photoelectric control device, thermal printing device, printer, piston pump, the sea heater pump, magnetic pump in the multistage pump, tower, material level detection, double barrel, stirring device, cutting device, etc.
