Product description:

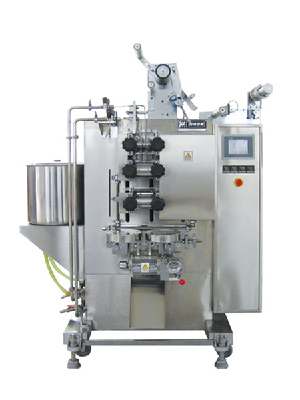

JW - J/Y2G350AII. Product model

Product features

This machine adopts the advanced industrial computer control system, through the Chinese touch LCD screen, easy to accurately complete can be conveniently and accurately bag size adjustment, the change of packing capacity, packing speed regulation, automatic calibration, and other functions of setting. This machine USES the three sections of the seal (the first and second paragraph is heat seal, the third paragraph for the cold sealing reinforced sealing), 2 column in the form of the machine so as to realize the quad seal packing. Metering device can choose, there are many ways such as piston pump for packaging glue body (P) and the pump on the sea (H), used in liquid packaging magnetic multistage pump (M), used for gluing body packaging and must be continuous filling tower pump (R), automatic filling and packing machine is the ideal liquid viscous, can be packing filling at high temperature. The aircraft power supply adopts servo motor, low noise, stable and reliable operation, accurate and durable, etc.

Suitable for the material

Suitable for all kinds of middle and lower viscosity of the paste shape items, such as ketchup, all kinds of sauce, shampoo, laundry detergent, ointment, jam in pesticide, etc.

The main parameters

Packing ability: 60-150 bags/min (depending on the packaging material, material and specifications)

Filling capacity: 30 ml or less small pump (p); 80 ml or less (P) pump; 50 ml or less pump (M); 20 or less (HCV); 60 or less (HRV)

Bag length: 40 ~ 200 mm

Bag width: 40 mm to 90 mm

Seal number: three sections

Packaging film width: 80 ~ 180 mm

The largest film roll diameter: 400 mm

Film core pipe diameter: 75 mm

Power: 4.2 KW, three-phase 380 v (+ / - 5%), 50 hz

Depth: 950 mm; Width: 1550 mm; Total height: 2600 mm (highest)

Machine weight: 600 kg

U needs beyond the above special customization.

Optional device

Photoelectric control device, printer, piston pump, the sea heater pump, magnetic pump in the multistage pump, tower, material level detection, double VAT, stirring device, etc.
