Product description:

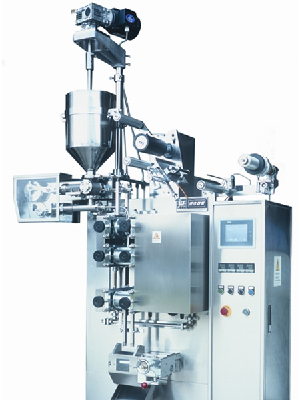

JW - J/YG350AII. Product model

Product features

This machine adopts the advanced industrial computing control system, through the Chinese touch LCD screen, can be easily and accurately complete bag size adjustment, the change of packing capacity, packing speed regulation, automatic calibration, and other functions of setting. This machine USES the three sections of the seal (the first and second paragraph is heat seal, the third paragraph for the cold sealing reinforced sealing), metering device can choose, there are many ways such as used for packaging glue body piston pump (P) and the pump on the sea (H), used in liquid packaging magnetic multistage pump (M), used for gluing body packaging and must be continuous filling tower pump (R), automatic filling and packing machine is ideal for thick, can be packing filling at high temperature.

Suitable for the material

Suitable for all kinds of middle and lower viscosity of the paste shape items, such as ketchup, all kinds of sauce, shampoo, laundry detergent, ointment, jam in pesticide, etc.

The main parameters

Packing ability: 40-150 bags/min (depending on the packaging material, material and specifications)

Filling capacity: 30 ml or less small pump (p); 80 ml or less pump (P); 50 ml or less pump (M); 20 or less (HCV); 60 or less (HRV)

Bag length: 40 ~ 200 mm

Bag width: trilateral sealing: 40 mm to 90 mm

Seal number: three sections

Packaging film width: 80 ~ 180 mm

The largest film roll diameter: 400 mm

Film core pipe diameter: 75 mm

Power: 4.5 KW, three-phase 380 v (+ / - 5%), 50 hz

Depth: 900 mm; Wide: 1550/1500 mm; High total: 1800/2600 mm (highest)

Machine weight: 500/550 kg

U needs beyond the above special customization.

Optional device

Photoelectric control device, thermal printing device, printer, piston pump, the sea heater pump, magnetic pump in the multistage pump, tower, material level detection, double VAT, stirring device, etc.
