Product description:

JW - JG350AB. Product model

Product features

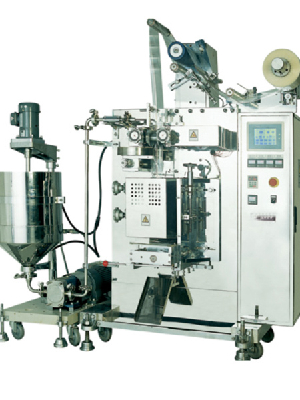

This machine is of three roller sealing way (the first and second paragraph is heat seal, the third paragraph for room temperature reinforced sealing) single elongated liquid automatic filling and packing machine, heavy body. This machine adopts the advanced industrial computer control system, through the Chinese touch LCD screen can be conveniently and accurately completing bag can be easily and accurately the size of the adjustment, the change of packing capacity, packing speed regulation, automatic calibration, and other functions of setting. Metering device can choose, there are many ways such as piston pump for packaging glue body (P) and the pump on the sea (H), used for gluing body packaging and must be continuous filling tower pump (R), automatic filling and packing machine is the ideal liquid viscous, can be packing filling at high temperature. Continuous filling material feeding way, the machine adopts sealed liquid "bite", can be completely ruled out bag, air sealing stability is good. The most save packaging materials, packaging form and pocket the slender, beautiful, easy to use.

Suitable for the material

Suitable for all kinds of middle and lower viscosity of the paste shape items, such as ketchup, all kinds of sauce, shampoo, laundry detergent, ointment, jam in pesticide, etc.

The main parameters

Packaging capacity: 20-120 bags/min (depending on the packaging material, material and specifications)

Filling capacity: 10-200 ml

Bag length: 40 ~ 200 mm

Bag width: trilateral sealing: 40 mm to 90 mm

Seal number: three sections

Packaging film width: 50 ~ 180 mm

The largest film roll diameter: 350 mm

Film core pipe diameter: 75 mm

Power: 5 kw, three-phase 380 v (+ / - 5%), 50 hz

Depth: 850 mm; Width: 1450 mm; Total height: 1800 mm (highest)

Machine weight: 500 kg

U needs beyond the above special customization.

Optional device

Photoelectric control device, printer, piston pump, the sea heater pump, magnetic pump in the multistage pump, tower, material level detection, double VAT, stirring device, etc.
