Product description:

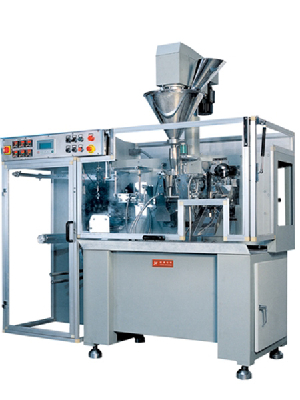

JW - F360WS. Product model

Product features

This machine is specialized in the automatic filling and packing machine designed for powder material, the machine adopts the advanced industrial computer control system, through the Chinese touch LCD screen can realize the function of setting, make the operation more simple. Packaging process intuitive, rapid method is simple to operate and easy to specifications. According to the need to change the trilateral sealing and quadrilateral sealing seal two different forms, the fuselage sealing tightness good, beautiful appearance. Metering device can choose, there are many ways such as in multiple packaging glue body piston pump (P) and pump (H) in the sea.

Suitable for the material

Suitable for all kinds of seasoning powder, pesticide powder particles, low viscosity of the paste all items, such as ketchup, all kinds of sauce, shampoo, laundry detergent, ointment, jam in pesticide, etc.

The main parameters

Packaging capacity: 110 bags/min or less (depending on the packaging material, material and specifications)

Filling capacity: 2.5 ~ 60 ml

Bag width: 50 ~ 110 mm

Bag length: 50 ~ 130 mm

Packaging film width: 100 ~ 260 mm

The largest film roll diameter: 500 mm

Film core pipe diameter: 70-80 - mm

Power: 1.9 KW, three-phase 380 v (+ / - 5%), 50 hz

Depth: 800 mm; Width: 1850 mm; Total height: 2000 mm (highest)

Machine weight: 450 kg

U needs beyond the above special customization.

Optional device

Screw metering device, hot press printing device, printer, piston pump, the pump on the sea, magnetic multistage pumps, etc.
