Product description:

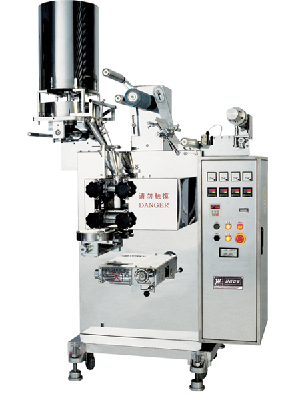

JW - K/FG250. Product model

Product features

The machine for two pieces of heat sealing roller way of sealing, can perform automatic filling and packing of trilateral or quadrilateral sealing machine. Mainly used in the packaging of powder, granules. Metering device has a variety of ways, such as measuring plate method (T), screw method (S). The bag length and width of the machine without replacing heat sealing parts can be adjusted within a certain scope.

Suitable for the material

Suitable for all kinds of powder particles of Chinese traditional medicine, tea, granular food, instant noodle seasoning powder, pesticide powder, etc.

The main parameters

Packaging capacity: 120 bags/min or less (depending on the packaging material, material and specifications)

Filling capacity: 50 ml or less

Bag width: 30 ~ 90 mm

Bag length: 40 ~ 160 mm

Seal number: 2

Packaging film width: 60 ~ 180 mm

The largest film roll diameter: 400 mm

Film core pipe diameter: 75 mm

Power - 4/4.5 - KW, three-phase 380 v (+ / - 5%), 50 hz

Depth: 850 mm; Width: 1450 mm; Total height: 1900 mm (highest)

Machine weight: 400 kg

U needs beyond the above special customization.

Optional device

Photoelectric control device, film tension control device, hot press printed words, code printer, linear vibration disc and vibration, etc.
