Product description:

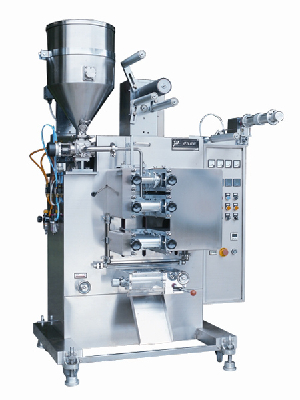

Product model: JW - JG3300QX - M

Product features

The machine USES three roller sealing way, the metering pump adopts pneumatic drive, independent control, simple operation, large amount of filling and metering adjustable on line. This bag of long range is big, can be filled at high temperatures is packing materials, automatic filling and packing machine is the ideal sticky.

Suitable for the material

Suitable for all kinds of sauce shape items, such as bean paste, tomato sauce, ointment, jam, pesticide, etc.

The main parameters

Packaging capacity: 30-50 bags/min (depending on the packaging material, material and specifications)

Filling capacity: 270 ml or less

Bag length: 40 ~ 200 mm

Bag width: trilateral sealing: 40 mm to 150 mm

Seal number: three sections

Packaging film width: 80 ~ 300 mm

The largest film roll diameter: 400 mm

Power: 3.5 KW, three-phase 380 v (+ / - 5%), 50/60 hz

Depth: 1700 mm; Width: 1200 mm; Total height: 2050 mm (highest)

Machine weight: 600 kg

U needs beyond the above special customization.

Optional device

Photoelectric control device, thermal printing device, printer, material level detection, mixing device, etc.
